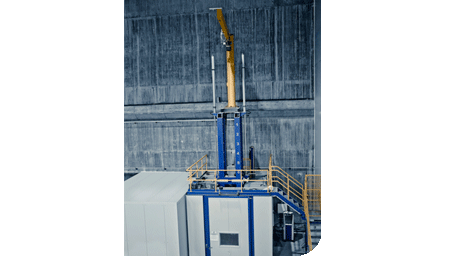

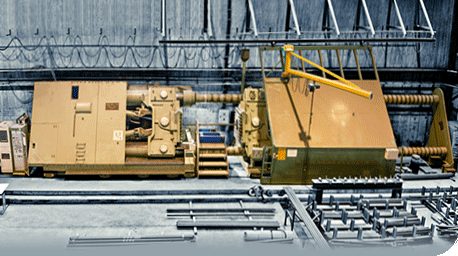

5000 kN Tensile testing machine

Ma­nu­fac­tu­rer: Dy­na­mess
Test ty­pes:

Ten­si­on sta­tic and dy­na­mic (fa­ti­gue tes­ting un­der fluc­tua­ting loads), load tests (tes­ting of su­b­as­sem­blies)
Test load:  500 to 5000 kN
Test fre­quen­cy: max. 5 Hz
Spe­ci­men dia­me­ter:  up to 90 mm
Spe­ci­men length: 3500 to 6000 mm

5000 kN Tensile testing machine

Ma­nu­fac­tu­rer: Von Roll AG
Test ty­pes:

Ten­si­on sta­tic, load tests (tes­ting of su­b­as­sem­blies)
Test load: 500 to 5000 kN
Spe­ci­men dia­me­ter:  50 to 80 mm
Spe­ci­men length: 2500 to 8000 mm

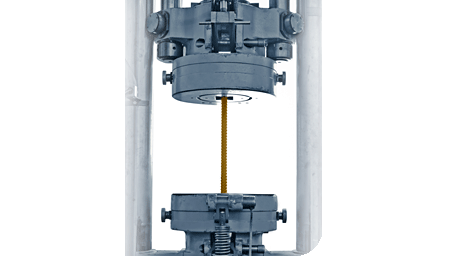

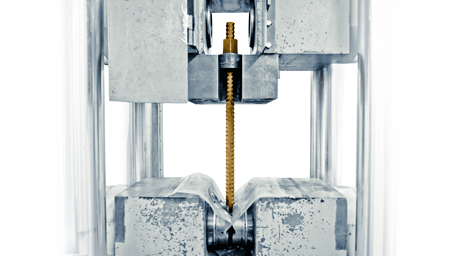

2000 kN Tensile testing machine

Ma­nu­fac­tu­rer: Schenck
Test ty­pes:

Ten­si­on / com­pres­si­on sta­tic and dy­na­mic (fa­ti­gue tes­ting un­der fluc­tua­ting and al­ter­na­ting loads), load tests (tes­ting of su­b­as­sem­blies)
Test load: 100 to 2000 kN
Test fre­quen­cy: max. 10 Hz
Spe­ci­men dia­me­ter:  15 to 65 mm
Spe­ci­men length: 900 to 1100 mm

2000 kN Tensile testing machine

Ma­nu­fac­tu­rer: MFL
Test ty­pes:

Ten­si­on / com­pres­si­on sta­tic, load tests (tes­ting of su­b­as­sem­blies), com­pres­si­on tests
Test load: 100 to 2000 kN
Spe­ci­men dia­me­ter:  12 to 65 mm
Spe­ci­men length: 500 to 1200 mm

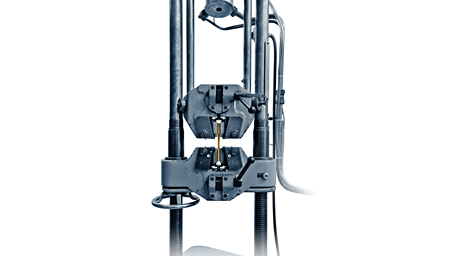

200 kN Tensile testing machine

Ma­nu­fac­tu­rer:
Lo­sen­hau­sen Mo­dell UHP 20
Test ty­pes:

Ten­si­le tests on pro­por­tio­nal spe­ci­mens (with and wi­thout ex­ten­so­me­ter; load tests, com­pres­si­on tests (DCP)

Test load:
10 to 200 kN
Spe­ci­men dia­me­ter:
2 to 30 mm
Spe­ci­men length:
100 to 500 mm



1000 kN Relaxation testing machine

Ma­nu­fac­tu­rer: MFL
Test ty­pes:

Creep-rup­tu­re tests (re­la­xa­ti­on), par­ti­cu­lar­ly on pre­stres­sing steel bars
Prüf­kraft: 100 to 1000 kN
Spe­ci­men dia­me­ter:  15 to 40 mm
Spe­ci­men length: 3200 mm

Hardness testing machine

Ma­nu­fac­tu­rer: Em­cotest
Test ty­pes:  HB 2,5/187,5    HB 5/750    HB 10/3000; HV

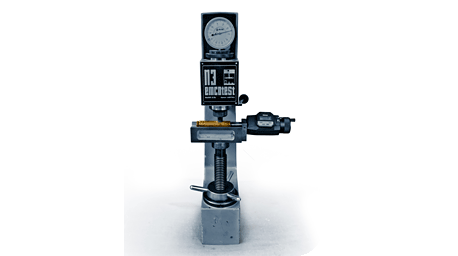

Hardness testing machine

Ma­nu­fac­tu­re: Em­cotest; Rei­cher­ter
Test ty­pes:  Rock­well

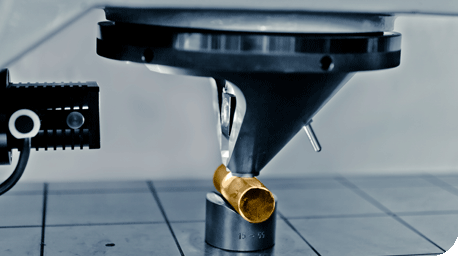

Small load hardness tester

Ma­nu­fac­tu­rer: Frank
Test ty­pes:  HV 0,2 - 10

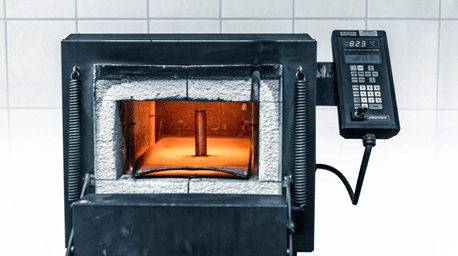

Annealing furnace

Ma­nu­fac­tu­rer: Na­bert­therm
Test ty­pes:  Heat-tre­at­ment si­mu­la­ti­ons: Nor­ma­li­zing; quen­ching and tem­pe­ring; iso­ther­mal pro­ces­ses; tem­pe­ring

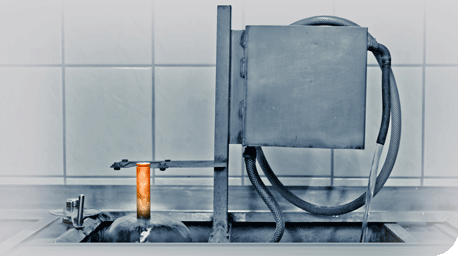

Jominy test apparatus

Ma­nu­fac­tu­rer:

Self-built SAH de­vice fit­ted on­to Em­cotest Rock­well hard­ness tes­ting ma­chi­ne
Test ty­pes:  Re­cor­ding of jo­mi­ny cur­ves


Spectro spark emission spectrometer

Ma­nu­fac­tu­rer: Ther­mo Fis­her ARL Quan­tris
Test ty­pes:  Low-al­loy – high-al­loy steels, tool steel, alu­mi­ni­um …

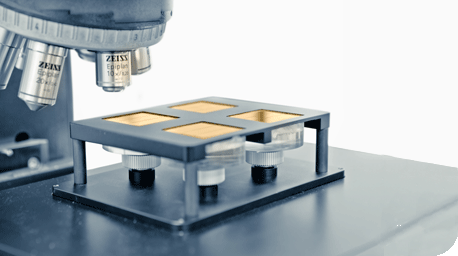

Light microscope with automatic image recognition

Ma­nu­fac­tu­rer:

Mi­kro­skop Zeiss Axio Imager A1m

Con­ver­ted by Fa. dhs so­lu­ti­on / Pi­xel Fer­ber
Test ty­pes:

(mo­du­les) ma­nu­al and au­to­ma­ted de­ter­mi­na­ti­on of pu­ri­ty DIN 50602/DIN EN 10247/ASTM E45/ISO 4967/NFA-04-106;

Grain si­ze de­ter­mi­na­ti­on DIN EN ISO 643

Pan­o­ra­mic images (Stich Con­trol)

Put­ting to­ge­ther of pan­o­ra­mic images from any num­ber of in­di­vi­du­al images

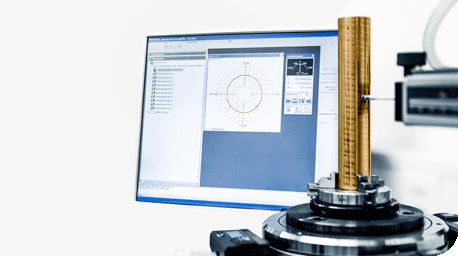

Roundness tester

Ma­nu­fac­tu­rer: Mitu­to­yo RA120-P
Test ty­pes:

Round­ness, co­axia­li­ty, con­centri­ci­ty, even­ness, un­round­ness, per­pen­di­cu­la­ri­ty, par­el­lism

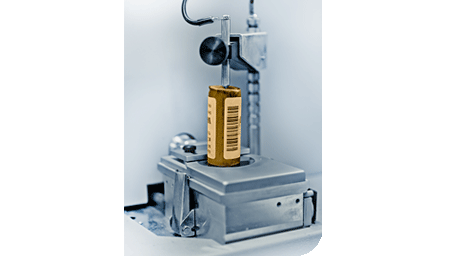

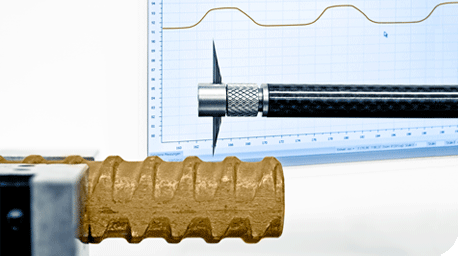

Profile scanner

Ma­nu­fac­tu­rer: Op­ta­com LC10
Tes­ting pos­si­bi­li­ties:

Pro­fi­le mea­su­re­ment of thre­ad bars

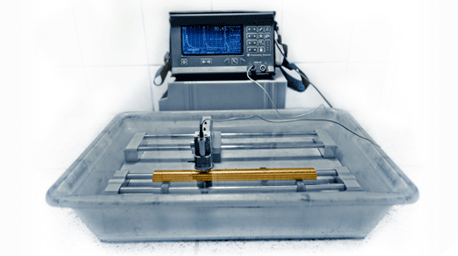

Ultrasonic testing equipment

Ma­nu­fac­tu­rer: Kraut­krä­mer Bran­son USN 50

2000 kN Tensile testing machine

Ma­nu­fac­tu­rer:
Schenck
Test ty­pes:

Ten­si­on / com­pres­si­on sta­tic and dy­na­mic (fa­ti­gue tes­ting un­der fluc­tua­ting and al­ter­na­ting loads), load tests (tes­ting of su­b­as­sem­blies)

Test load:
100 to 2000 kN
Test fre­quen­cy:
max. 10 Hz
Spe­ci­men dia­me­ter:
15 to 65 mm
Spe­ci­men length:
900 to 1100 mm
